STK Series Single Speed Electric Chain Hoist – Rigid Top Hook
$2,469.00
Sale price
$2,469.00
Regular price

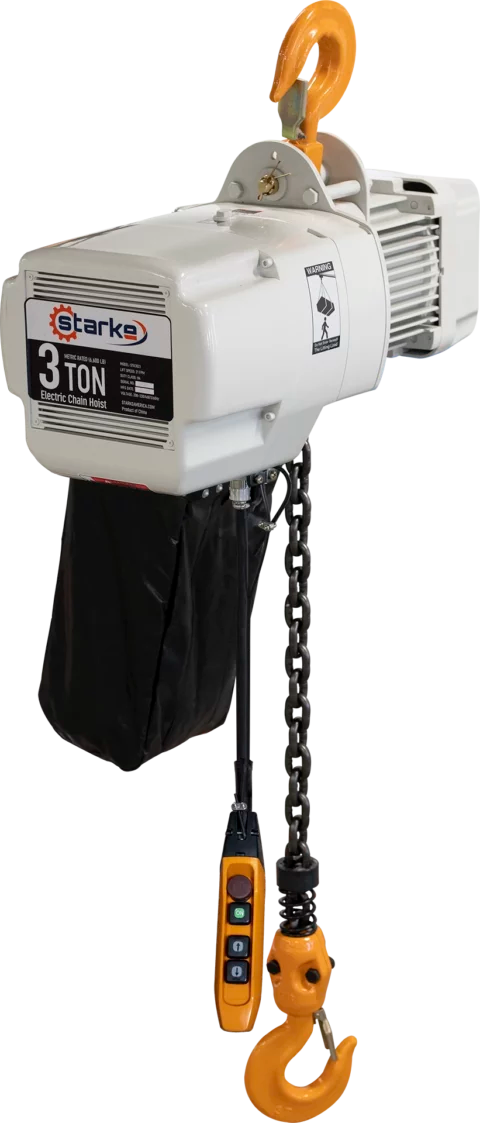

Starke STK Series single-speed three-phase electric chain hoist, 1/2 Ton through 5 Ton capacities, supplied with Rigid Top Hook mounting (order suffix "-A"). Select capacity, lift height and voltage below.
Features
- 460V, 230V, 208V 3-Phase capable
- Fast lifting and lowering speed at 26 FPM (21 FPM on 3 Ton, 11 FPM on 5 Ton)
- Canvas chain container included
- Includes quick plug-in pendant cable
- Remove pendant and quick plug-in radio receiver for optional radio control
- Efficient and reliable lifting motor & brake assembly
- Rigid top hook suspension
Specifications & Models
| SKU | Capacity | Lift Height | Voltage | Base SKU | Speed | Reeving | Voltage | HP | Amps | Headroom | Net Weight | List Price |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STK0526-10-460V-3PH-A | 1/2 Ton | 10' | 460V 3-Phase | STK0526-10-460V-3PH | 26 FPM | Single | 460/3 | 1 | 1.9 | 20" | 95 lbs | $2,469.00 |
| STK0526-10-230V-3PH-A | 1/2 Ton | 10' | 208-230V 3-Phase | STK0526-10-230V-3PH | 26 FPM | Single | 208-230/3 | 1 | 3.8 | 20" | 95 lbs | $2,569.00 |
| STK0526-15-460V-3PH-A | 1/2 Ton | 15' | 460V 3-Phase | STK0526-15-460V-3PH | 26 FPM | Single | 460/3 | 1 | 1.9 | 20" | 98 lbs | $2,578.00 |
| STK0526-15-230V-3PH-A | 1/2 Ton | 15' | 208-230V 3-Phase | STK0526-15-230V-3PH | 26 FPM | Single | 208-230/3 | 1 | 3.8 | 20" | 98 lbs | $2,678.00 |
| STK0526-20-460V-3PH-A | 1/2 Ton | 20' | 460V 3-Phase | STK0526-20-460V-3PH | 26 FPM | Single | 460/3 | 1 | 1.9 | 20" | 101 lbs | $2,688.00 |
| STK0526-20-230V-3PH-A | 1/2 Ton | 20' | 208-230V 3-Phase | STK0526-20-230V-3PH | 26 FPM | Single | 208-230/3 | 1 | 3.8 | 20" | 101 lbs | $2,788.00 |
| STK1026-10-460V-3PH-A | 1 Ton | 10' | 460V 3-Phase | STK1026-10-460V-3PH | 26 FPM | Single | 460/3 | 2 | 3.9 | 23" | 130 lbs | $3,397.00 |
| STK1026-10-230V-3PH-A | 1 Ton | 10' | 208-230V 3-Phase | STK1026-10-230V-3PH | 26 FPM | Single | 208-230/3 | 2 | 7.8 | 23" | 130 lbs | $3,497.00 |
| STK1026-15-460V-3PH-A | 1 Ton | 15' | 460V 3-Phase | STK1026-15-460V-3PH | 26 FPM | Single | 460/3 | 2 | 3.9 | 23" | 134 lbs | $3,522.00 |
| STK1026-15-230V-3PH-A | 1 Ton | 15' | 208-230V 3-Phase | STK1026-15-230V-3PH | 26 FPM | Single | 208-230/3 | 2 | 7.8 | 23" | 134 lbs | $3,622.00 |
| STK1026-20-460V-3PH-A | 1 Ton | 20' | 460V 3-Phase | STK1026-20-460V-3PH | 26 FPM | Single | 460/3 | 2 | 3.9 | 23" | 138 lbs | $3,655.00 |
| STK1026-20-230V-3PH-A | 1 Ton | 20' | 208-230V 3-Phase | STK1026-20-230V-3PH | 26 FPM | Single | 208-230/3 | 2 | 7.8 | 23" | 138 lbs | $3,755.00 |
| STK2026-10-460V-3PH-A | 2 Ton | 10' | 460V 3-Phase | STK2026-10-460V-3PH | 26 FPM | Single | 460/3 | 4 | 7.8 | 28" | 241 lbs | $4,325.00 |
| STK2026-10-230V-3PH-A | 2 Ton | 10' | 208-230V 3-Phase | STK2026-10-230V-3PH | 26 FPM | Single | 208-230/3 | 4 | 15.6 | 28" | 241 lbs | $4,425.00 |
| STK2026-15-460V-3PH-A | 2 Ton | 15' | 460V 3-Phase | STK2026-15-460V-3PH | 26 FPM | Single | 460/3 | 4 | 7.8 | 28" | 248 lbs | $4,510.00 |
| STK2026-15-230V-3PH-A | 2 Ton | 15' | 208-230V 3-Phase | STK2026-15-230V-3PH | 26 FPM | Single | 208-230/3 | 4 | 15.6 | 28" | 248 lbs | $4,610.00 |
| STK2026-20-460V-3PH-A | 2 Ton | 20' | 460V 3-Phase | STK2026-20-460V-3PH | 26 FPM | Single | 460/3 | 4 | 7.8 | 28" | 255 lbs | $4,697.00 |
| STK2026-20-230V-3PH-A | 2 Ton | 20' | 208-230V 3-Phase | STK2026-20-230V-3PH | 26 FPM | Single | 208-230/3 | 4 | 15.6 | 28" | 255 lbs | $4,797.00 |
| STK3021-10-460V-3PH-A | 3 Ton | 10' | 460V 3-Phase | STK3021-10-460V-3PH | 21 FPM | Single | 460/3 | 4 | 7.8 | 32" | 244 lbs | $6,002.00 |
| STK3021-10-230V-3PH-A | 3 Ton | 10' | 208-230V 3-Phase | STK3021-10-230V-3PH | 21 FPM | Single | 208-230/3 | 4 | 15.6 | 32" | 244 lbs | $6,102.00 |
| STK3021-15-460V-3PH-A | 3 Ton | 15' | 460V 3-Phase | STK3021-15-460V-3PH | 21 FPM | Single | 460/3 | 4 | 7.8 | 32" | 253 lbs | $6,227.00 |
| STK3021-15-230V-3PH-A | 3 Ton | 15' | 208-230V 3-Phase | STK3021-15-230V-3PH | 21 FPM | Single | 208-230/3 | 4 | 15.6 | 32" | 253 lbs | $6,327.00 |
| STK3021-20-460V-3PH-A | 3 Ton | 20' | 460V 3-Phase | STK3021-20-460V-3PH | 21 FPM | Single | 460/3 | 4 | 7.8 | 32" | 262 lbs | $6,452.00 |
| STK3021-20-230V-3PH-A | 3 Ton | 20' | 208-230V 3-Phase | STK3021-20-230V-3PH | 21 FPM | Single | 208-230/3 | 4 | 15.6 | 32" | 262 lbs | $6,552.00 |
| STK5011-10-460V-3PH-A | 5 Ton | 10' | 460V 3-Phase | STK5011-10-460V-3PH | 11 FPM | Double | 460/3 | 4 | 7.8 | 37" | 306 lbs | $6,502.00 |
| STK5011-10-230V-3PH-A | 5 Ton | 10' | 208-230V 3-Phase | STK5011-10-230V-3PH | 11 FPM | Double | 208-230/3 | 4 | 15.6 | 37" | 306 lbs | $6,602.00 |
| STK5011-15-460V-3PH-A | 5 Ton | 15' | 460V 3-Phase | STK5011-15-460V-3PH | 11 FPM | Double | 460/3 | 4 | 7.8 | 37" | 315 lbs | $6,889.00 |
| STK5011-15-230V-3PH-A | 5 Ton | 15' | 208-230V 3-Phase | STK5011-15-230V-3PH | 11 FPM | Double | 208-230/3 | 4 | 15.6 | 37" | 315 lbs | $6,989.00 |
| STK5011-20-460V-3PH-A | 5 Ton | 20' | 460V 3-Phase | STK5011-20-460V-3PH | 11 FPM | Double | 460/3 | 4 | 7.8 | 37" | 324 lbs | $7,277.00 |
| STK5011-20-230V-3PH-A | 5 Ton | 20' | 208-230V 3-Phase | STK5011-20-230V-3PH | 11 FPM | Double | 208-230/3 | 4 | 15.6 | 37" | 324 lbs | $7,377.00 |
Notes
- Dimensions (A/B/C/D/E/F/G/J | Lug-Pin Headroom I | Standard Headroom H): STK0526 22-3/8"/11-7/8"/10-1/2"/12-1/2"/4-3/8"/8-1/8"/1-1/16"/1-1/16" | 12-3/8" | 19"; STK1026 24-5/8"/12-13/16"/11-13/16"/12-1/8"/4-15/16"/7-3/16"/1-1/4"/1-1/4" | 18-5/8" | 22-3/8"; STK2026 28-13/16"/15-5/16"/13-1/2"/17-9/16"/6-5/16"/11-1/4"/1-1/2"/1-1/2" | 20-1/8" | 26-1/8"; STK3021 28-15/16"/15-7/16"/13-1/2"/16-5/16"/6-3/8"/9-15/16"/1-3/4"/1-3/4" | 21-13/16" | 28-7/8"; STK5011 28-15/16"/15-9/16"/13-3/8"/16-5/16"/4-1/16"/12-1/4"/1-7/8"/1-7/8" | 27" | 35-7/8"
- SPT Lug Trolley option is not available on 3 Ton and 5 Ton models.
Starke America list pricing, revised 1/2026. 1 year parts & labor warranty. For technical information visit starkeamerica.com.
